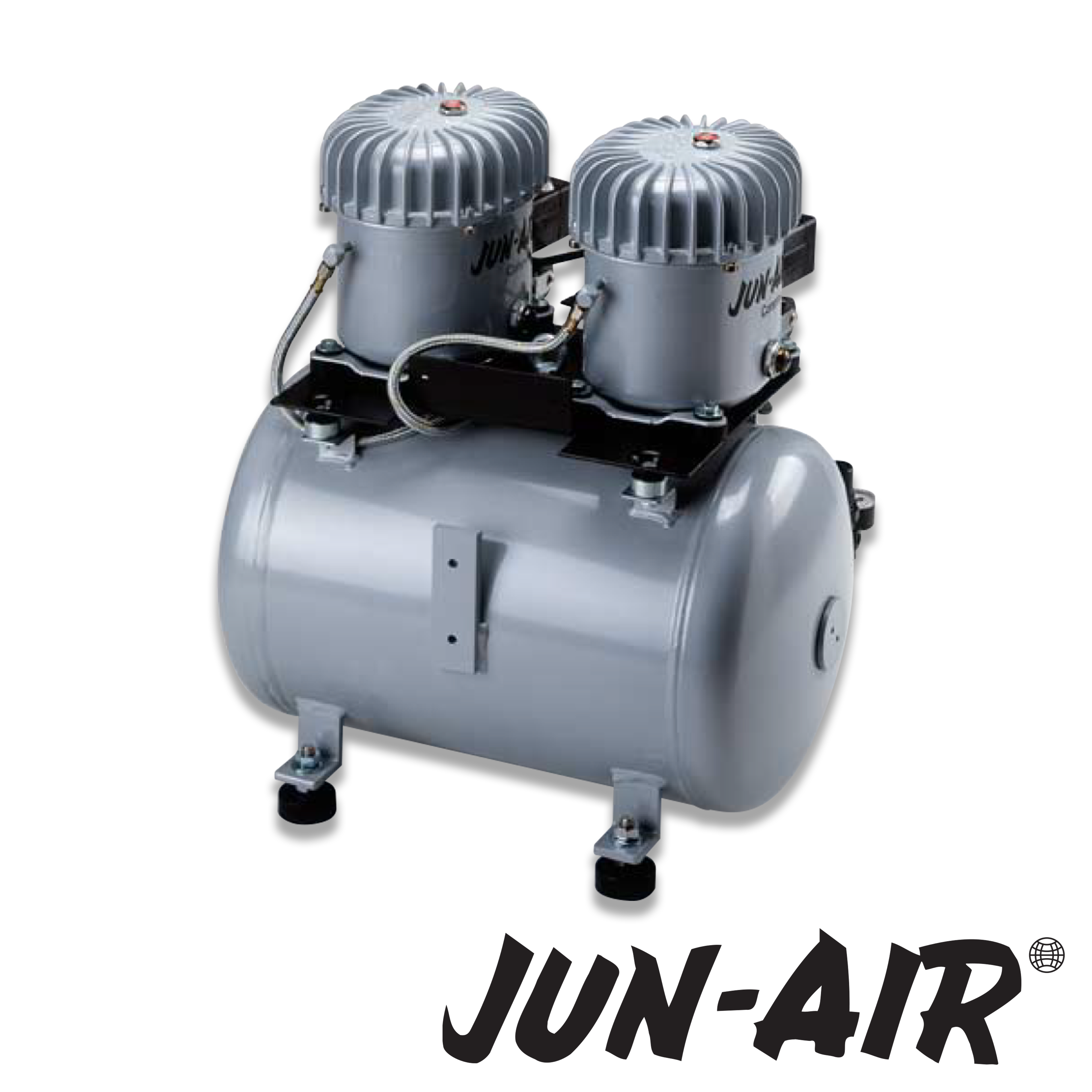

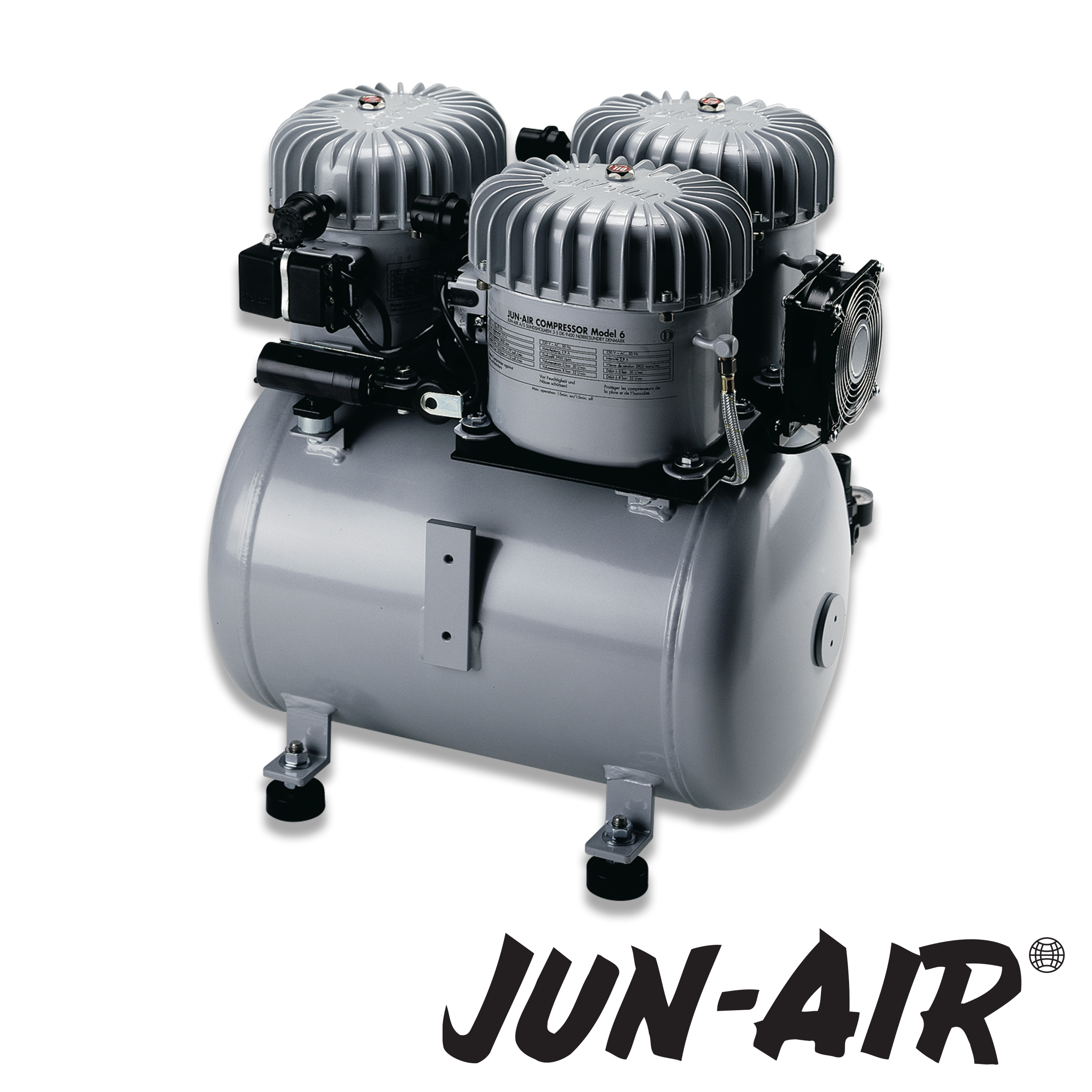

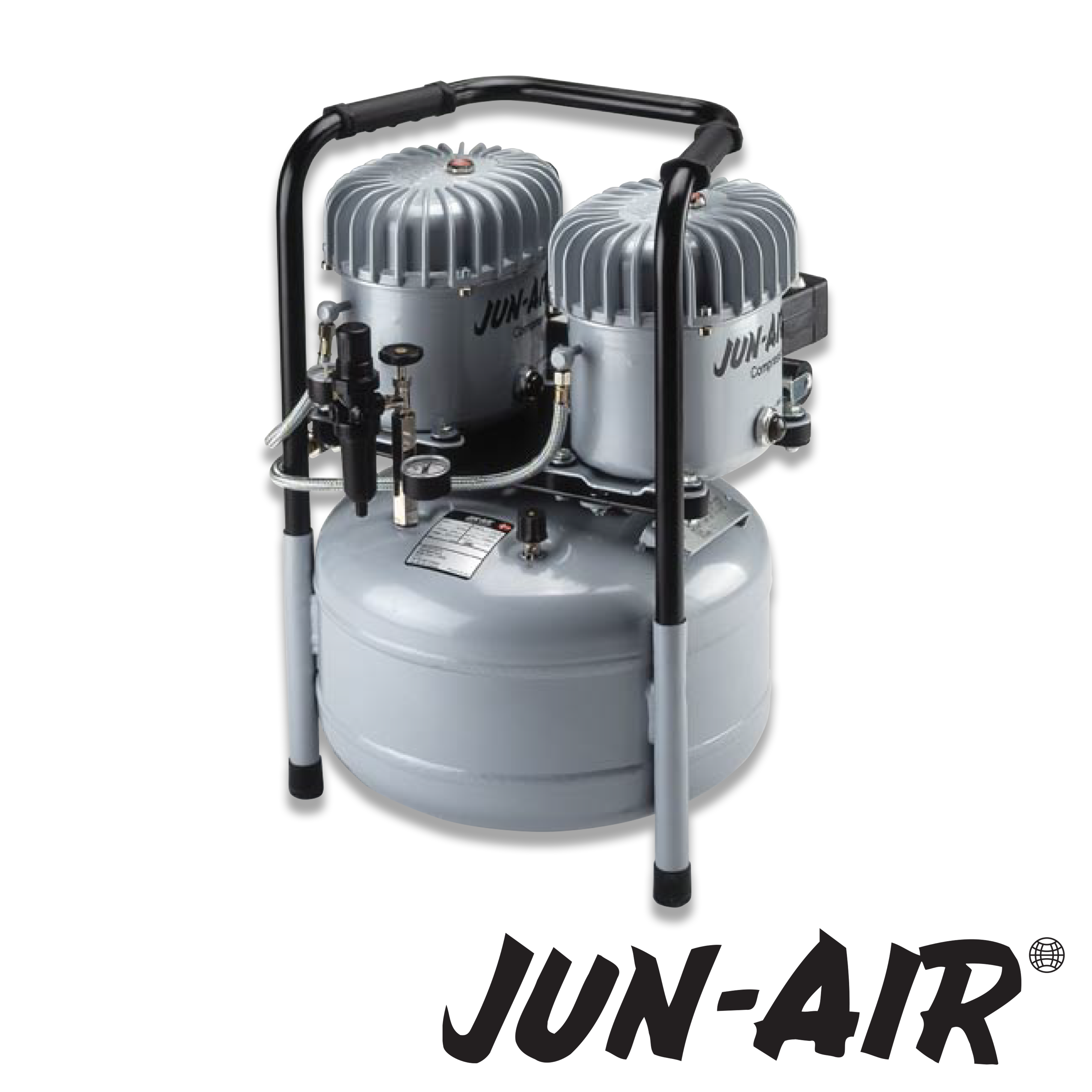

Jun-Air compressor maintenance

Motor opening



1 • Unscrew the four screws.



2 • Remove the intake filter.



3 • Remove the lid.





Disassembly of the cups



4 • Unscrew the screw.



5 • Remove the cup.



6 • Remove the old gasket and clean the location.



7 • Clean the inside of the cup.



8 • In the same way, dismantle and clean the second cup.





Reassembly of the cups



9 • Replace the gasket.



10 • Put back the cup and tighten the screw.



11 • In the same way, reassemble the second cup.





Disassembly of the valve box



12 • Lift the block minding the springs underneath.



13 • Unscrew the four screws.



14 • Remove the old gasket.



15 • Protect the inside of the motor.



16 • Clean the surface of the block.



17 • Remove the plate and the old gasket.



18 • Clean the lid surface.





Reassembling the valve box



19 • Replace gaskets and the plate.



20 • Screw the four screws.



21 • Lower the block into the tank.





Draining



22 • Hold the block with a strap.



23 • Empty used oil.



24 • Remove the strap.





Reassembly of the motor



25 • Screw the four retainer screws.



26 • Screw the hose back at the rear of the motor.





Reassembly of the electrical module



27 • Screw the screw of the earth cable on the right side.



28 • Reconnect the black cable.



29 • Put back the plastic cover.



30 • Put back the safety clip.



31 • Screw the safety screw on top of the electrical module.



32 • Reclip the cylindrical block.





Oil replacement

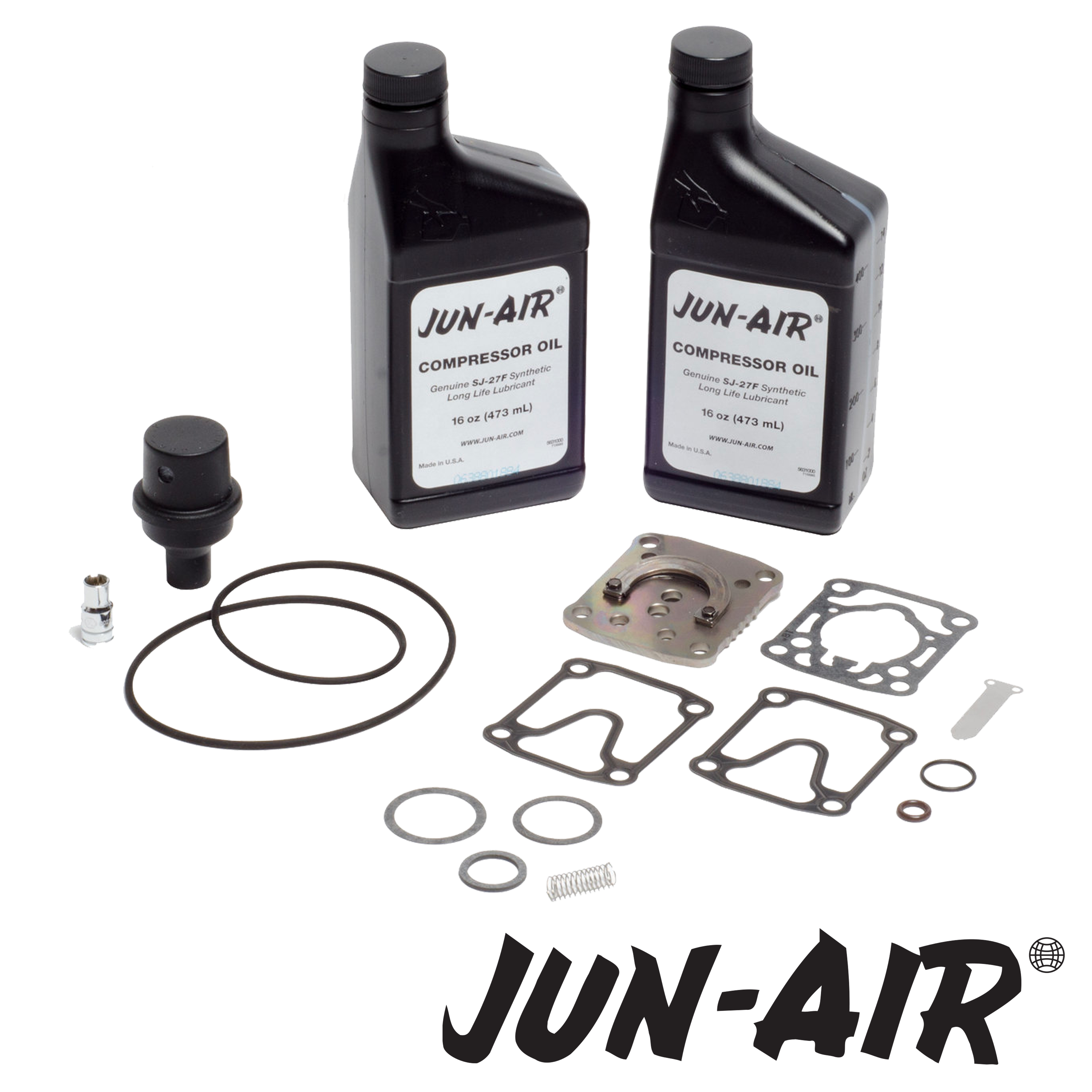

• Fill the tank with SJ-27F oil without exceeding MAX.





Reassembling the motor



34 • Remove the old gasket.



35 • Replace the gasket.



36 • Screw the four screws (of the lid).



37 • Replace the intake filter.





Disassembling the non-return valve



38 • Unscrew the hose.



39 • Unscrew the valve.



40 • Disassemble the valve.



41 • Clean the support.



42 • Remove the old gasket.



43 • Replace the gasket.



44 • Clean the inside of the valve.



45 • Remove the old gasket.





Reassembly of the non-return valve



46 • Replace the gasket.



47 • Reassemble the valve.



48 • Screw back the valve.



49 • Screw back the hose.





Disassembly of the oil inlet cap



50 • Unscrew the cap.



51 • Remove the old gasket.





Reassembly of the oil inlet cap



52 • Replace the gasket.



53 • Screw back the cap.





Rotating brush cleaning can be done with fine sandpaper.



The draining and oil replacement can be done by the top of the motor.
